Investigating rising disk space usage on an Ubuntu web server

Since I set up daily logwatch emails on my Ubuntu web server, I’ve noticed the disk usage slowly creeping up each day – starting at 25% in January, and now at 47%, 10 months later.

Left unchecked, this would likely fill my disk in a year or two’s time. So I figured I should try to diagnose what was eating up the free space, and decide whether it could be stopped/reduced.

I started by looking at the largest directories on disk:

sudo du -h --max-depth=1 / | sort -hr | head -20

/var was shown as occupying 20G of space. So I dug into that (note --max-depth=2 to show more levels at once):

sudo du -h --max-depth=2 /var | sort -hr | head -20

This showed that 16G was taken by /var/lib/docker, and 3.6G by /var/log/journal.

Pruning Docker files

sudo docker system df showed a summary of Docker’s disk usage, including 23 images occupying 7.3 GB of space, of which Docker estimated 5 GB was “reclaimable”.

I ran the following commands, to prune stopped containers and unused images:

sudo docker container prune
sudo docker image prune
sudo docker builder prune

The container prune and builder prune reclaimed almost nothing, but image prune reclaimed 3.6 GB in dangling images. I ran docker volume ls -f "dangling=true" to identify any unused volumes that could be deleted, but there were none.

Pruning systemd journal log files

sudo journalctl --disk-usage confirmed “Archived and active journals take up 3.3G in the file system”. I wonder where the other 0.3 GB went! Anyway, regardless, there’s no way I need 10 months of daily systemd logs any more.

To prevent this build-up, I customised my journald configuration file with sudo nano /etc/systemd/journald.conf, uncommenting/modifying the following lines:

[Journal]
SystemMaxUse=500M
MaxRetentionSec=2week
MaxFileSec=1day

The SystemMaxUse line prevents journald log files from taking up more than 500 MB of space, while the MaxRetentionSec line retains only the last 2 weeks of logs. The MaxFileSec line isn’t required, but I figured I’d add it at the same time, to tidy up the log files – it will set journald to start a new log file each day, which will make reviewing the logs easier if I ever need to do it in the future.

I then restarted journald, to apply the changes:

sudo systemctl restart systemd-journald

A second run of sudo journalctl --disk-usage showed that the disk usage had been reduced to 52.8M . I guess, depending on your server, you might be able to tweak those SystemMaxUse and MaxRetentionSec settings up or down, to be more in sync with each other (in my case, the 2week cut-off is kicking in way before the 500M cut-off).

The proof of the pudding

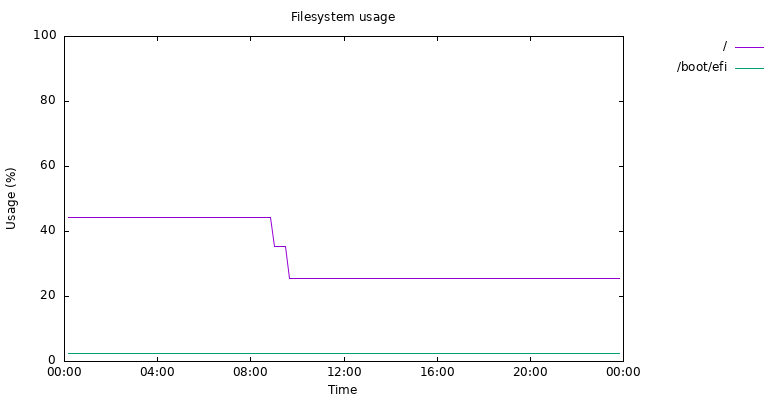

Next morning, my server delivered its daily sysstat email into my inbox, with a very pleasing graph of filesystem usage at the end:

Mission accomplished!
